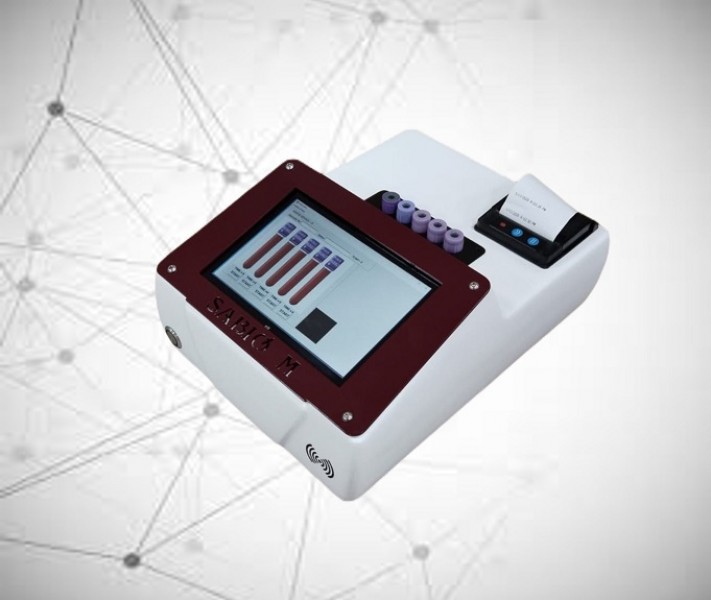

SABIO M Automated ESR Analyzer from EDTA Tubes

SKU: SABIOM
MARKA: SABIO
SABIO M Automated ESR Analyzer is a bench top system for small size hospitals, Laboratories and doctor offices. It has complete integration in the hematology laboratories by the direct determination of ESR from blood/EDTA samples with its smart and innovative technology combining “ccd cam” and internationally accepted Westergren method. SABIO M is highly cost effective and provides real patient comfort by using same EDTA tubes coming from CBC tests. 5 samples loading positions, eliminating test lost by counting only the valid results, being maintanence free, being environment-friendly, LCD touch screen and data transmission to LIS are just some of the advanced features of the analyzer which provides laboratory confort and productivity.

SABIO M Automated ESR Analyzer is a bench top system for small size hospitals, Laboratories and doctor offices. It has complete integration in the hematology laboratories by the direct determination of ESR from blood/EDTA samples with its smart and innovative technology combining “ccd cam” and internationally accepted Westergren method.

SABIO M is highly cost effective and provides real patient comfort by using same EDTA tubes coming from CBC tests.

5 samples loading positions, eliminating test lost by counting only the valid results, being maintanence free, being environment-friendly, LCD touch screen and data transmission to LIS  are just some of the advanced features of the analyzer which provides laboratory confort and productivity.


General Properties

• Use of the same CBC tubes. No dedicated citrate tube needed

• Westergren method by CCD camera

• Use of smart cards

• No reagents required, environmently friendly

• 5 sample loading positions

• Continuous loading of samples untill the first result

• First result available after 20 minutes and each following result within 5 sec.

• Advanced QC Management by LJ Graphics

• 7 inch LCD touch screen

• User friendly software

• Built-in Thermal Printer (Optional External Printer)

• LIS connection

• Optional Barcode reader

Tecnical Specifications

Principles

Westergren method by CCD Camera

Sample Loading Positions

5, Direct loading of Blood/EDTA Samples

Throughput

Up to48 samples/hour

Time to First Result

First result in 20 minutes

Time to Result

3 seconds

Minimum Sample Volume

2 ml

Sample Test Volume

2 ml-4 ml

Barcode Reader

External (optional)

Internal Printer

Yes

LIS Communication

Yes

Display

Liquid Touch Screen, 800x600 pixel

Operating Environment

Temperature:15°C-35°C,  Humidity: <80%

Power Requirement

A.C. 110-230V <=300 VA   50/60Hz
