General Properties
*3-part differentiation of WBC, 21 parameters and 3
histograms
*Combination of pulse baseline tracking, digital sheath flow,
waveform discrimination and intelligent floating threshold
tecnologies
*Electrical impedance method (WBC/RBC/PLT) and cyanide free
(HGB) method
*Up to 60samples per hour
*Whole blood and prediluted counting modes
*Excellent repeatability and wider linearity range
*Reliable alarm system with customized function

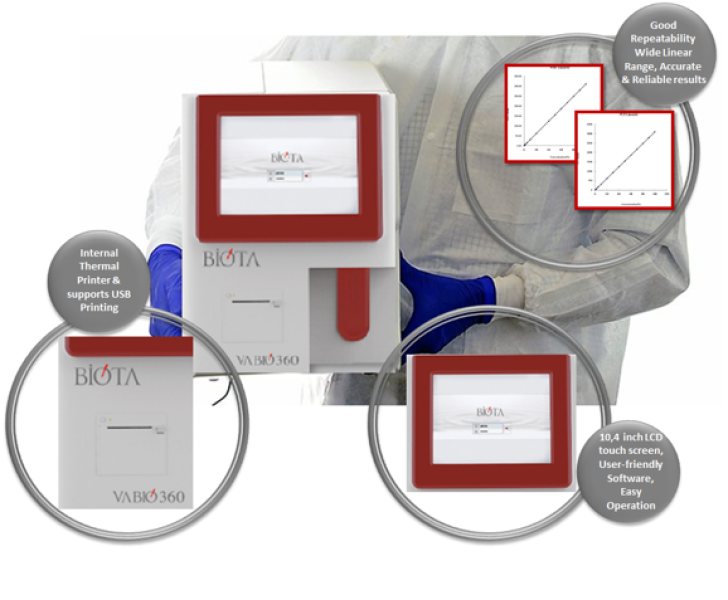

*More user friendly and visible by 10.4 inch touchscreen
*Maintenance-free syringe and no need flushing fluid
*Up to 50000 sample results, including histogram and partient
information can be stored
*Both thermal printer and USB external printer are supported
* Bi-directional LIS connection
Tecnical Specifications
Principles
Electrical Impedance method for WBC, RBC, PLT counting
Cyanide-free reagent for Hemoglobin test
Parameters
WBC, Lym#,Mid#, Gran#, Lym%, Mid%, Gran%, RBC, HGB, HCT, MCV,
MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR andP-LCC
3 histograms, alarm for abnormal erythrocytes, leucocytes,
andplatelet
Throughput
Up to 60 samples per hour
Sample Volume
Whole Blood: min. 9ul
Prediluted: min. 9ul
Data Storage Capacity
Up to 50,000 results including numeric and graphical
information
Quality Control System
L-J andX-B
Communication
Four USB port and Bi-directional LIS
Operating Environment
Temperature: 10oC-30oC
Humidity: ≤ 85%
Air Pressure: 70-106 kPa
Power Requirement
A.C. 100-240V ≤300VA 50/60Hz
Dimension and Weight
410mm(L) × 353mm(W) × 471mm(H)
Weight: ≤ 25kg
